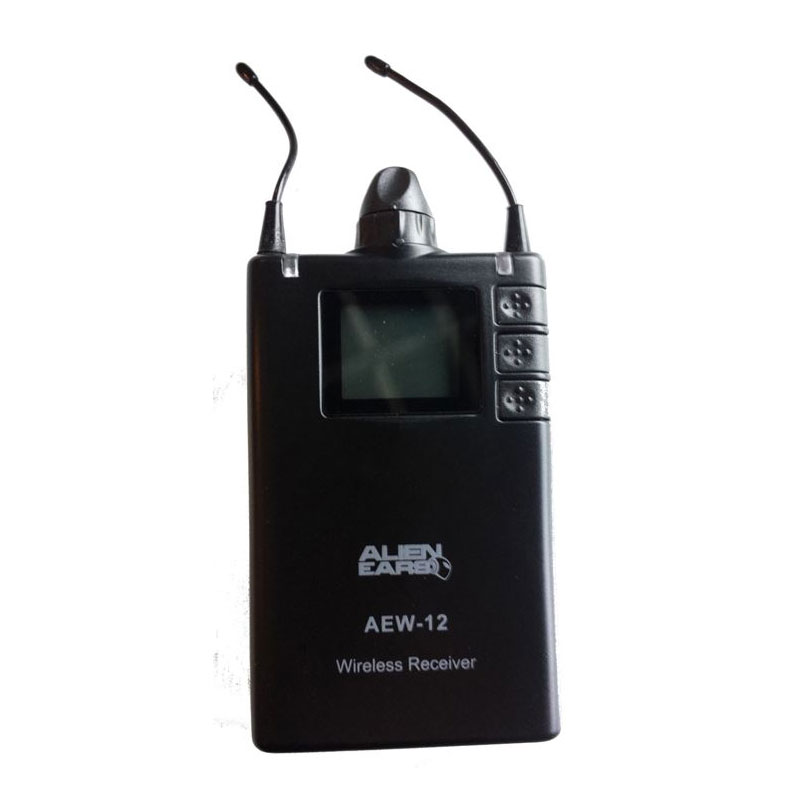

AEW12 Body Pack
$200.00
Out of stock
Description
BODY PACK RECEIVER SPECIFICATIONS:
Receiving Mode: Stereo – Dual Diversity (two antenna’s)
Frequency Range: FCC licenced to Alien Ears 903Mhz – 926.50Mhz
Bandwidth: 25Mhz
Oscillation Mode: PLL Synthesized
Freq Stability: +0.005%
Freq Response: 80-15,000Hz @ +3db
Max Deviation Range:+68kHz
Receiving Sensitivity: -107dBm
Squelch Level: -100dBm -90dBm -70dBm
Stereo Separation: 35dB
Output Jack: 3.5mm Stereo Headphone Jack (mini-jack)
Output Power: 32ohm: 2x50mW under 1KHz (T.H.D. 3%)
Headphone Impredance: 16ohm
Power Supply: 2AA Batteries
Current Consumtion: 150mA
Dimensions: 123x65x27mm
Body Pack Digital Functions & Displays:
Top of body pack: Large Volume knob with panning
Stereo/Mix Output (digital switch)
Several Eq’s (digital switch)
Volume Limiter (digital switch)
Freq Channel (digital switch)
Squelch Setting (digital switch)
Battery Indicator
Signal Intensity indicator
Volume Levels of Left and Right Channels indicator
